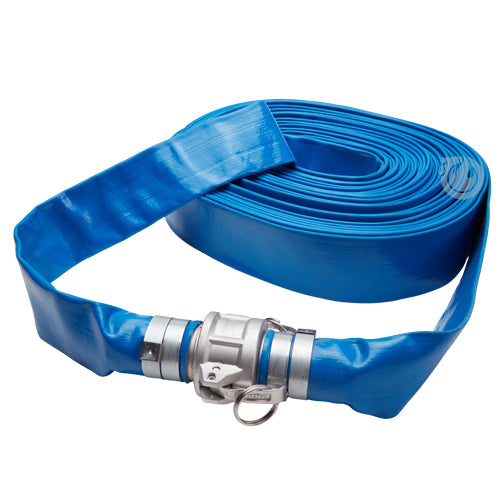

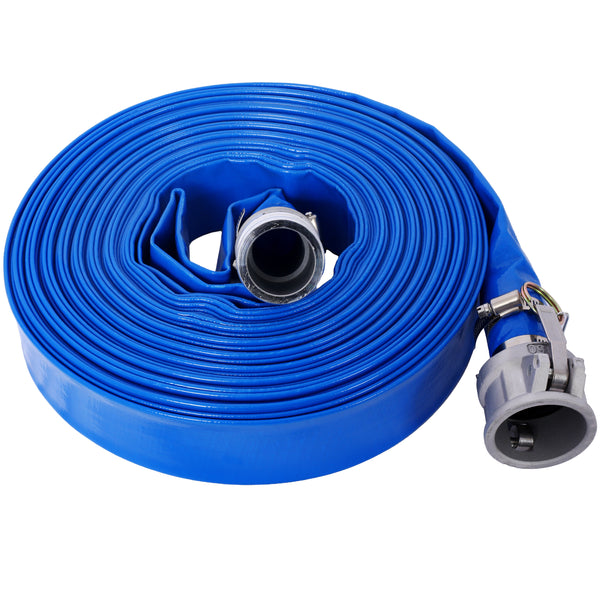

2 Inch X 100ft PVC Lay Flat Discharge Hose With Aluminum Camlock C & E Fittings, Cam Lock Fitting, Heavy Duty Reinforced Pump Backwash Hose Assembly

2 inch × 100 ft Blue Heavy Duty PVC Lay Flat Water Pump Discharge Hose Assembly with Aluminum Camlock C & E Fittings, Camlock Type F Included Specification: Hose Size: 2 inch, 3.4 inch wide; Male Cam lock Coupling - Aluminum 2 inch Type E Shank ; Female Cam lock Coupling - Aluminum and brass 2 inch Type C Shank ; Aluminum 2 inch Type F : 2 Male Adpater x 2 NPT Male threaded; Hose Length: 100 feet; Color: blue; Max Working Pressure : 90 psi; Temperature range: 23°F to 149°F (-5°C to 65°C) . heavy duty, super sturdy, relatively light weight. Formulated with UV protectors, able to withstand outdoor conditions. Use in all seasons, easy to storage and takes hardly any space. Applications: For swimming pool backwash, draining piping systems. For sewage pump, sump pump, trash pump and sand filter pumps etc. For open ended discharge applications For agriculture irrigation and landscaping. How to choose a discharge hose assembly for a water pump? 1. If your pump outlet is a Male camlock adapter, You can directly select camlock C&E and use the C-type connector to connect the backwash hose to the pump. 2. If your pump outlet is an NPT male threaded connection, You need to choose a camlock C&E connector combination with an A-type connector (one end is NPT female thread), rotate and screw the A-type connector onto the pump outlet (NPT male thread), and then use the C-type connector of the backwash hose to connect to the pump. 3. If your pump outlet is an NPT female threaded connection, You need to choose a combination of camlock C&E connectors with an F-type connector (one end is NPT male thread), rotate and screw the F-type connector into the pump outlet (NPT female thread), and then use the C-type connector of the backwash hose to connect to the pump. How does the connection work? From the hose ends quick release type couplings to a threaded type connection, you need a right Adaptor to screw onto pool’s discharge pipe end or pump outlet, such as camlock coupling type “A”, “F”. Type F: Male groove adapter end for connecting to female cam coupler (type C), Male NPT threaded end for connecting to an NPT female threaded connection (female thread pump outlet or pipe). Type E: Male camlock adapter end for connecting to female cam coupler (type C), Female hose shank side slide into hose, fixed directly with clamps. Easy Installation: To make a connection, simply slide the male adapter (type A, F or E) into the female coupler (type C) and with normal hand pressure, press the brass cam levers down, remain locked when engaged to help prevent disconnects. Just lift the cam arms and remove the adapter. The adaptor can be kept on the pump outlet or on the pipe for convenient next use. Notice: Please check pump outlet or PVC pipe sizes before ordering. Please select the right adapter according to the instructions above. Not good for drinking water. Service: If you have any questions or received a damaged or used products, do not hesitate to contact us, we will provide solutions within 24 hours. [STANDARD SIZE]. Temperature Range: 23°F to 149°F (-5°C to 65°C); Working Pressure: 90 PSI. [HIGH QUALITY]. 2 Male NPT thread x 2 Male cam and groove-style Adpater, From the hose ends quick release type couplings to the female threaded type connection, you can directly screw into pool’s discharge pipe end or pump female threaded outlet, then realize quick connect or disconnect between discharge hose assembly with pump. [EASY INSTALLATION]. lay flat discharge hose can be easily connected, after Type F is connected to the pump, just slide type F male adapter into type C female coupler, press the brass cam levers down with normal hand pressure or spanner, remain locked when engaged to help prevent disconnects. [HIGH DENSITY]. Ideal for draining swimming pools, backwash pool filter, sewage pump, sump pump, trash pump, pool drain and sand filter pumps etc; widely used in household, mine, factory, agriculture, and architectural engineering;This drain hose can adapt to most outdoor conditions and all seasons.
