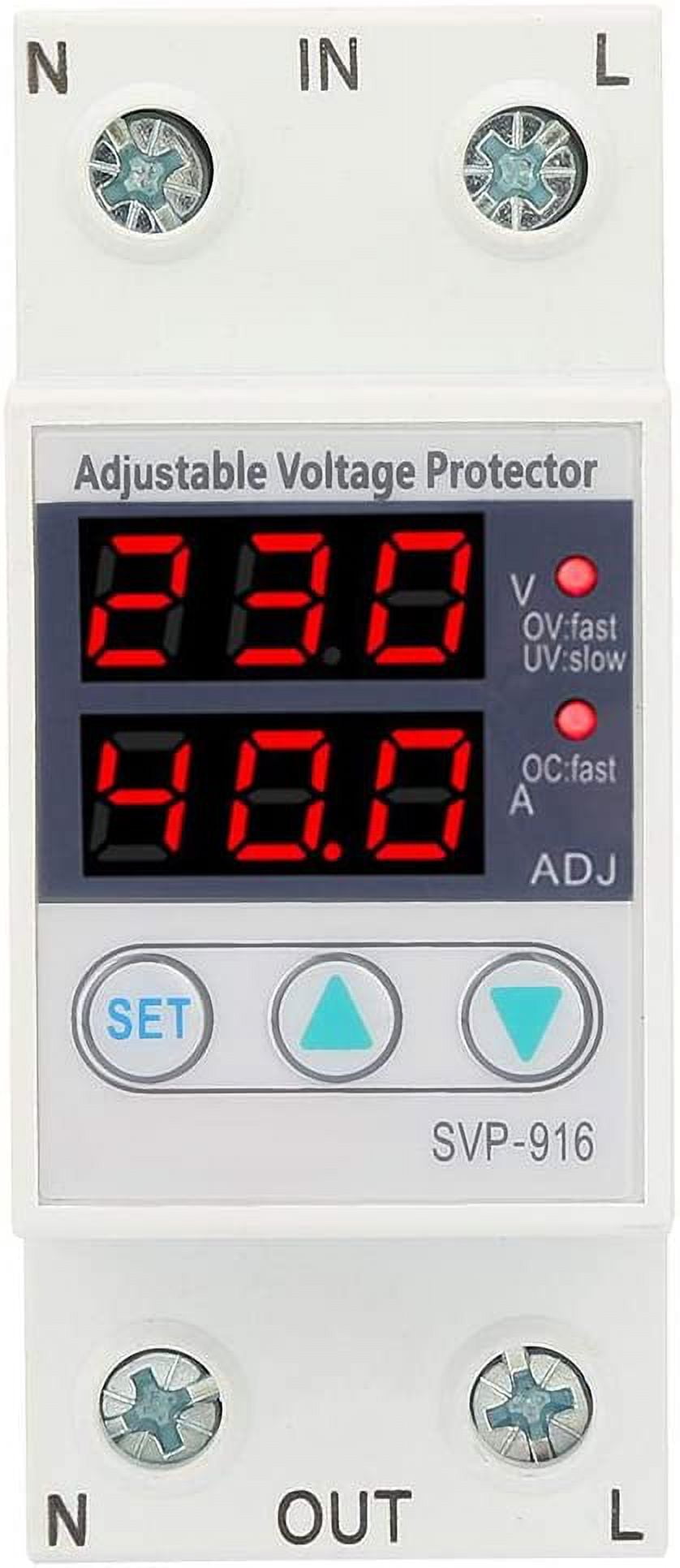

Single Phase Adjustable Over-Voltage Under-Voltage Current Protector 230V AC

Features: 1. The protector has over voltage protection, under voltage and other functions 2. The main feature is that the line has overvoltage or undervoltage, overcurrent condition, the product can cut off the power supply instantaneously, protect the electrical equipment from damage; when the line voltage returns to normal, the protector can automatically and normally 3. It is mainly used for the of over-voltage, under-voltage or over-current in the distribution line of residential household box or the of single-phase power equipment. 4. Suitable for single-phase AC voltage 230V, 50/60Hz, rated working current 63A and below users or loads 5. Low power consumption and long mechanical life Specification: Condition: Brand new Rated voltage 230VAC 50/60Hz Rated voltage 1-63A adjustable(default 63A)/1-40A adjustable(default40A) Overvoltage value range 221V-300V-OFF adjustable(default 280V) Overvoltage recovery voltage mediation range 220V-299V(default value 250V) Overvoltage action time 0.1s - 10s (default 0.1 seconds) Undervoltage value range 219V-150V-OFF adjustable(default 160V) Undervoltage recovery voltage mediation range 151V-220V( default value 180V) Undervoltage action time 0.1s - 10s (default 0.1 seconds) Overcurrent regulation range 1-63A (default 63A)/1-40A(default40A) Suitable for single-phase AC voltage 230V, 50/60Hz, rated working current 63A and below users or loads Voltage protector relay has over voltage protection, under voltage and other functions It is mainly used for the of over-voltage, under-voltage or over-current in the distribution line of residential household box or the of single-phase power equipment.
